Specification of GDG666 Magnetic particle inspection equipment

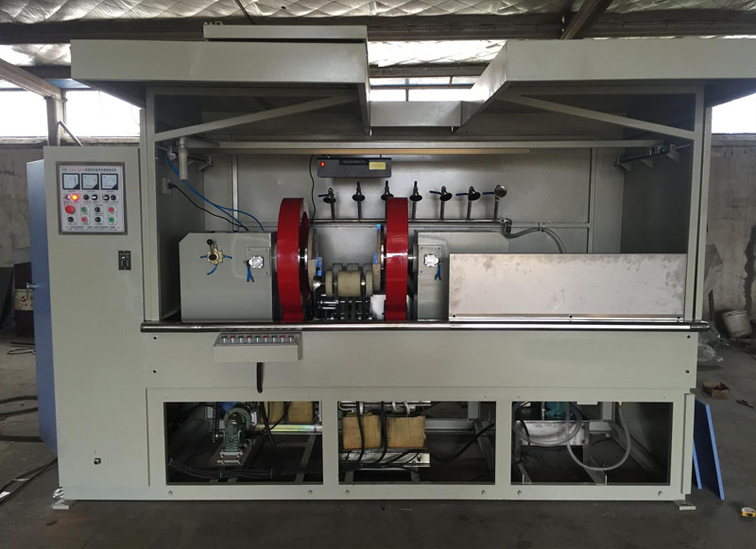

1.Equipment composition
--One set of control center (HMI touch screen operation, digital display)
--One set of main machine (including: circumferential and longitudinal transformer, circumferential clamping magnetizing mechanism, screw nut pole spacing adjustment mechanism, etc.)
--one set of magnetic suspension spray agitation recovery system

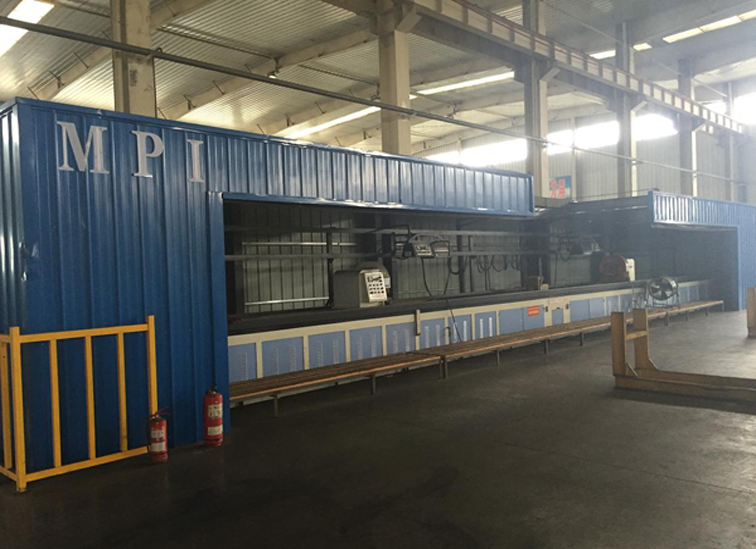

--one set of Darkroom system (automatic opening and closing)
--Two sets of longitudinal magnetizing coil and moving device
--Two sets of LED UV light system
--One set of bracket rotating mechanism
2.Test workpiece: lengthen the drill pipe.
3.Equipment capacity:
Test efficiency: 5-8 points / piece.
4.The design standard of this machine:
Magnetic particle testing machine (JB / t8290-2011).
5. Main technical indicators:
Circumferential magnetizing current: AC: 0 ~ 6000a (effective value) continuously adjustable, with power-off phase control;
Longitudinal magnetization magnetic potential: AC: 0-20000at (effective value) continuously adjustable, with power-off phase control;
Electrode spacing: 0-18000mm.
Magnetization principle: electrified, coil method, segmented magnetization.
Magnetization mode: circumferential magnetization, longitudinal magnetization and composite magnetization can be selected flexibly.
Operating environment: - 10 ℃ - + 40 ℃, relative humidity ≤ 80%.
Storage environment: temperature - 20 ℃ - 60 ℃, relative humidity ≤ 70%. No corrosive gas dust and strong high frequency electromagnetic pollution.
Ultraviolet intensity: the ultraviolet intensity at 380mm away from the workpiece shall not be less than 4000 μ w / cm2.
Sensitivity test: according to the provisions of JB / t6065-92 standard test piece for magnetic particle testing of the mechanical industry of the people's Republic of China, test with standard a type 2 test piece, with clear display.
Power supply: three phase four wire, 380V ± 20%, 50Hz, about 250A.
Inspection surface: cracks and other defects on all surfaces of the workpiece.
Demagnetization: attenuation type automatic demagnetization.
Demagnetization time: ≤ 4S.
Remanence: br ≤ 0.3mt.
Observation speed of workpiece rotation: 4-6rpm.
Magnetizing coil: inner diameter 400mm. Electric movement, segmented magnetization.
Pneumatic clamping: two way clamping, clamping stroke 0-50mm.
Air supply pressure: 0.4-0.8mp.
Magnetic power cabinet size: 620 * 500 * 1750, clamping device size: 20000 * 1000 * 1400 (excluding darkroom)
Equipment weight: 4T
