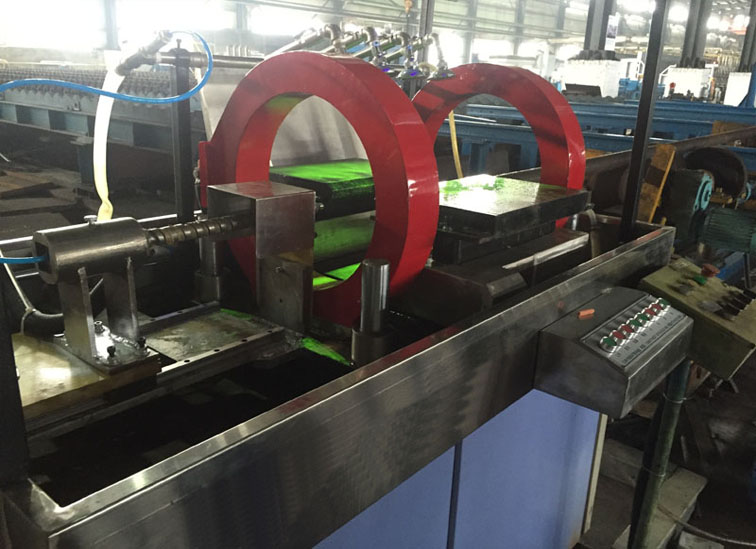

Specification of CUG222 Magnetic particle inspection equipment

1 . Main technical parameters:
1.1. Magnetization mode: two magnetization modes: circumferential magnetization and longitudinal magnetization.
1.2. Circumferential magnetization magnetic potential: AC 0 ～ 20000at effective value, continuously adjustable, with power-off phase control;
1.3. Longitudinal magnetization magnetic potential: AC 0 ～ 20000at effective value, continuously adjustable, with power-off phase control;
1.4. Temporary load rate: ≥ 30%;
1.5. Maximum detection outer diameter: 115-280mm;
1.6 working mode: manual and automatic;
1.7 flaw detection sensitivity: A1 type 15 / 50 (30 / 100) test piece shows clearly;
1.8 demagnetization mode: automatic attenuation demagnetization;
1.9. Circumferential demagnetization potential: AC 20000 ～ 0at effective value, digital display continuously adjustable;
1.10. Longitudinal demagnetization potential: AC 20000 ～ 0at effective value, digital display continuously adjustable;
1.11 demagnetization effect: ≤ 0.5mT;
1.12 working beat: magnetization time of each end is about 25 seconds / piece (detection sequence can be adjusted by programming);
1.13 power supply: three phase four wire 380V ± 10% 50Hz, instantaneous maximum 30A;
1.14 boundary dimension:
The main engine is about 1800 (L) × 800 (W) × 1650 (H) mm;
The power control cabinet is about 600 (L) × 450 (W) × 1850 (H) mm;
1.18 weight: 1500kg.

2 . Main components of the equipment:
2.1. One set of electrical control system cabinet
2.2. One set of control power supply
2.3. One set of magnetizing device
2.4. One set of magnetizing mechanism (equipped with two specifications of magnetic rods) for inner hole piercing
2.5 one set of magnetic suspension spraying and recovery system
2.6 one set of suspended LED fluorescent lamp and hand-held LED fluorescent lamp
2.7. one set of darkroom
